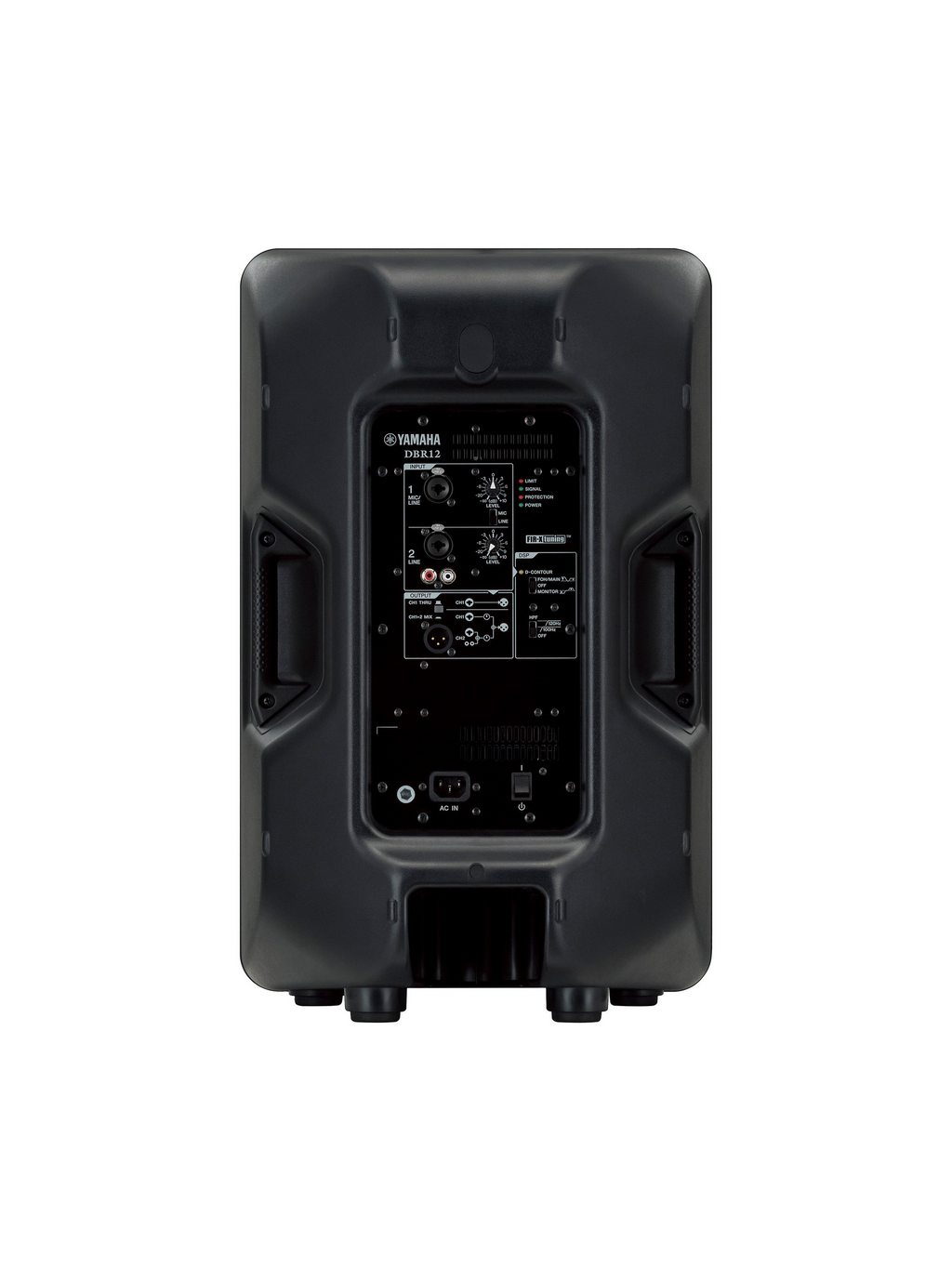

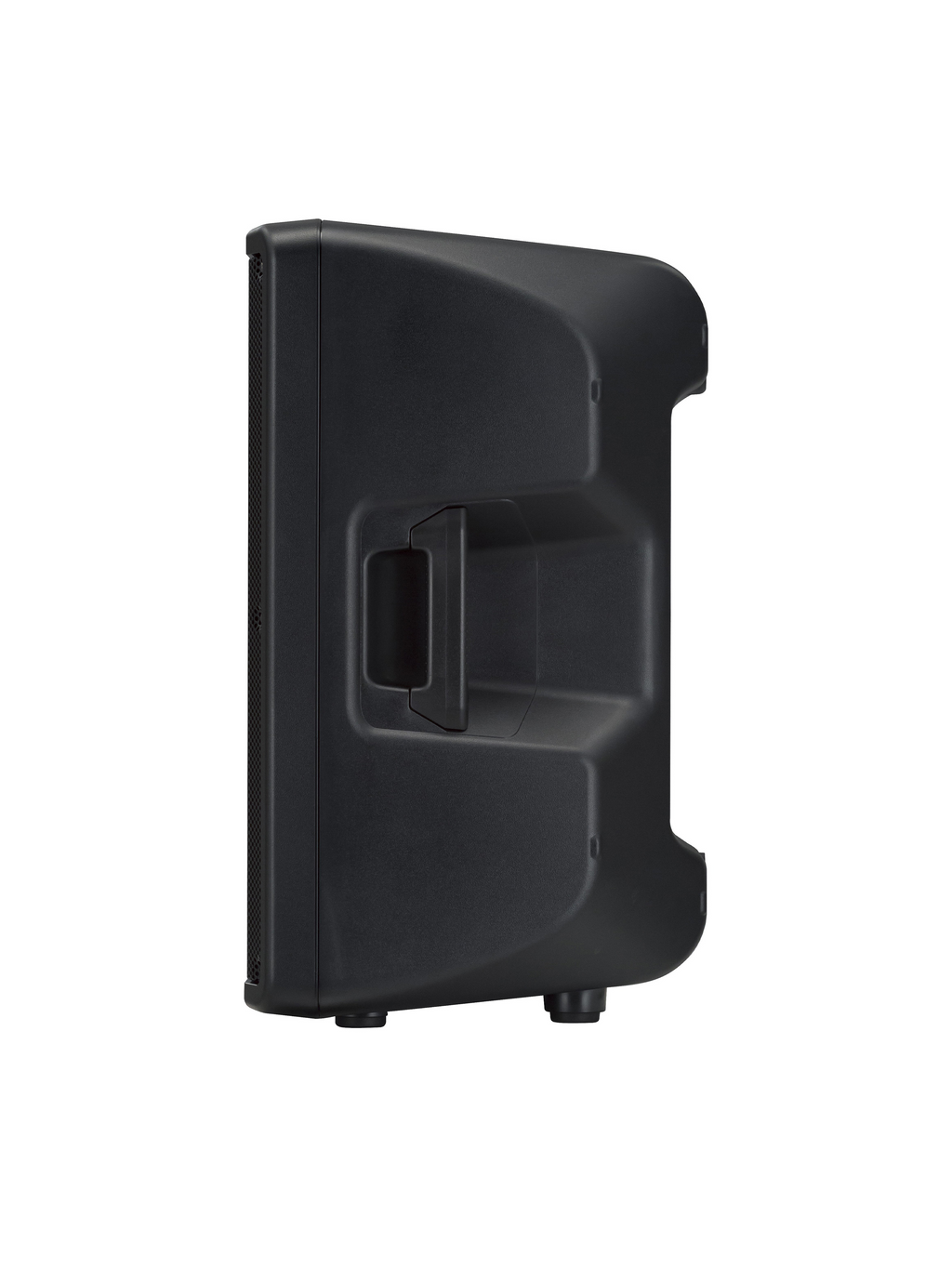

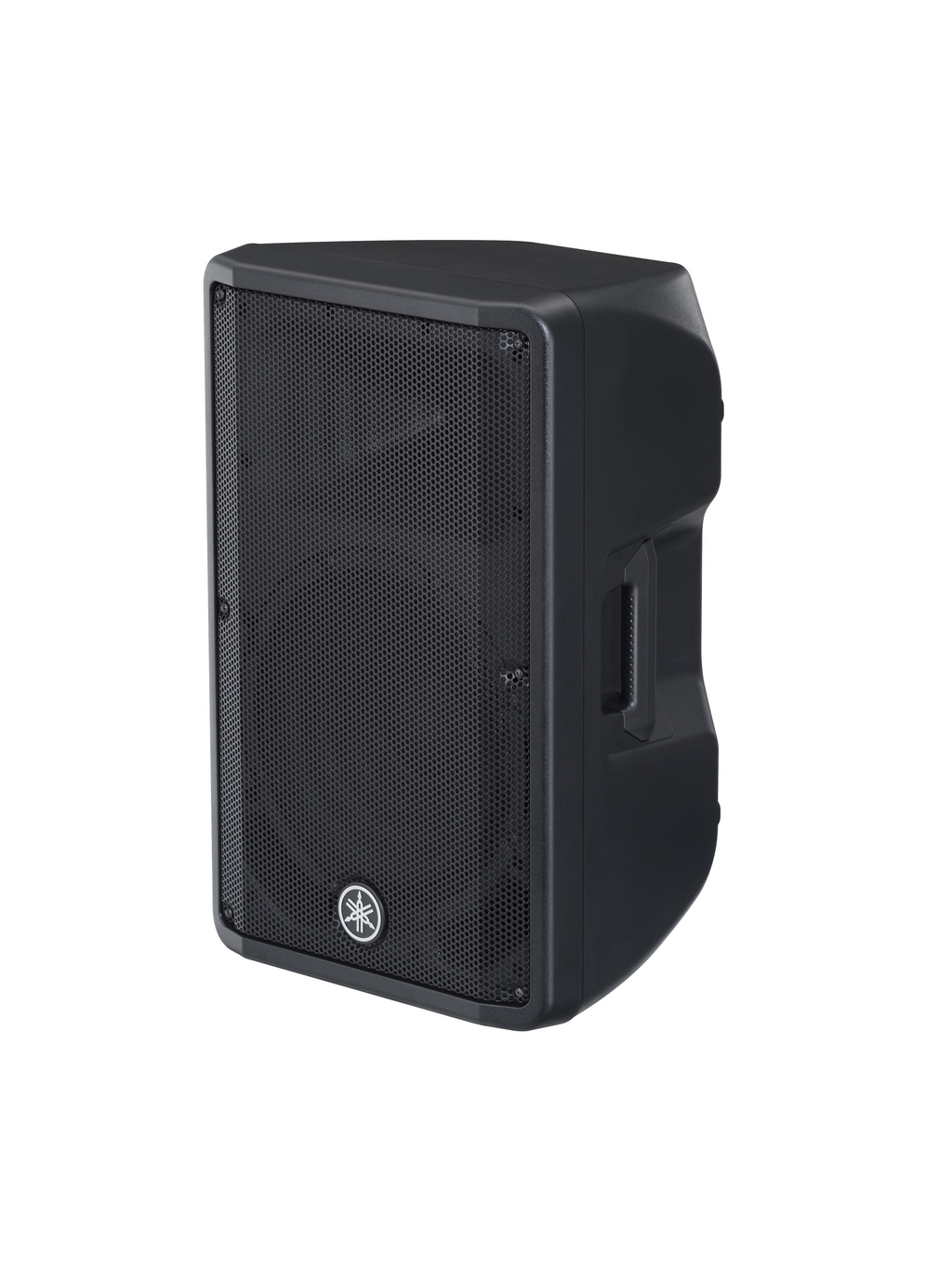

Yamaha DBR12 – Active 12” Powered Speaker

The Yamaha DBR12 is a high-performance, 12-inch powered speaker designed for live sound, DJs, bands, and installations. With advanced DSP processing and built-in amplification, it delivers clear, powerful audio in a portable and robust package.

Key Specifications

• Type: 2-Way, Bass-Reflex, Bi-Amped

• LF Driver: 12″ Woofer

• HF Driver: 1.4″ Compression Driver

• Frequency Response: 52 Hz – 20 kHz

• Maximum SPL: 131 dB

• Amplifier Output: 1000W peak, 465W continuous

• Coverage Angle: 90° Horizontal × 60° Vertical

• DSP: D-CONTOUR with FOH / Monitor / Off modes

• Inputs: 2-channel mixer — XLR/TRS combo + RCA

• Output: XLR link/through

• Pole Mount: 35 mm

• Rigging Points: 3 × M8

• Weight: 15.8 kg

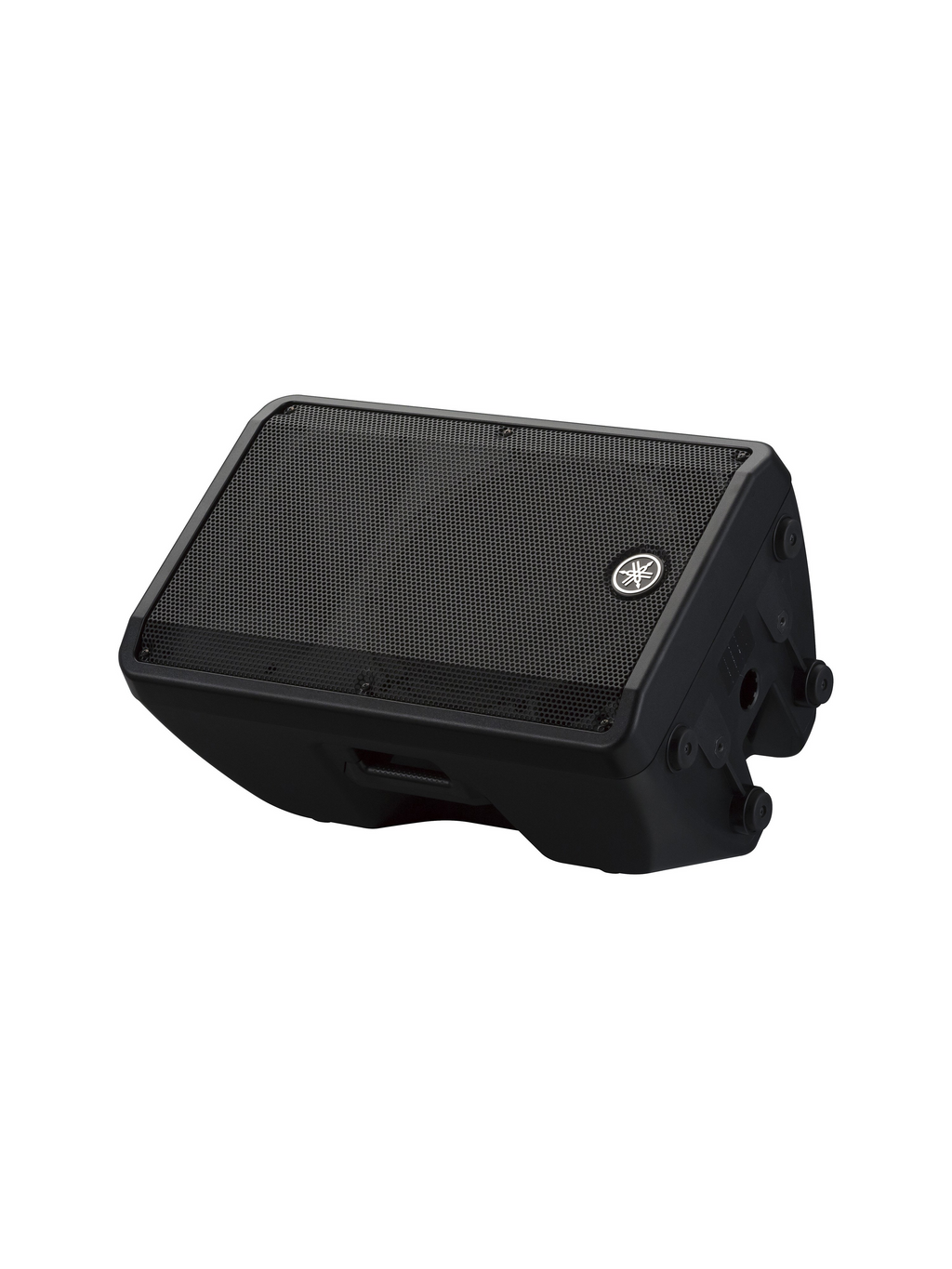

• Design: Trapezoidal cabinet, can be used on a stand or as a floor monitor
