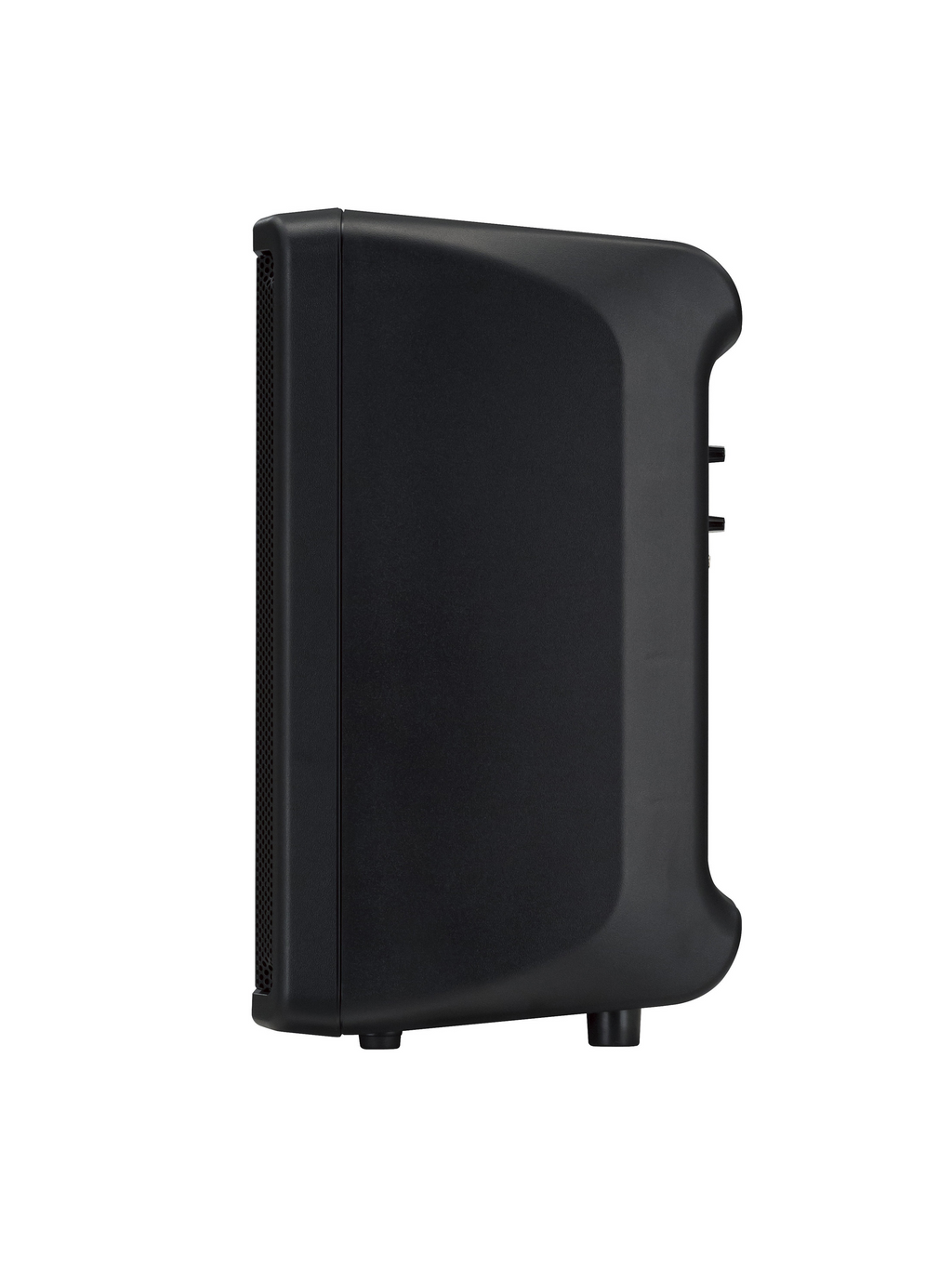

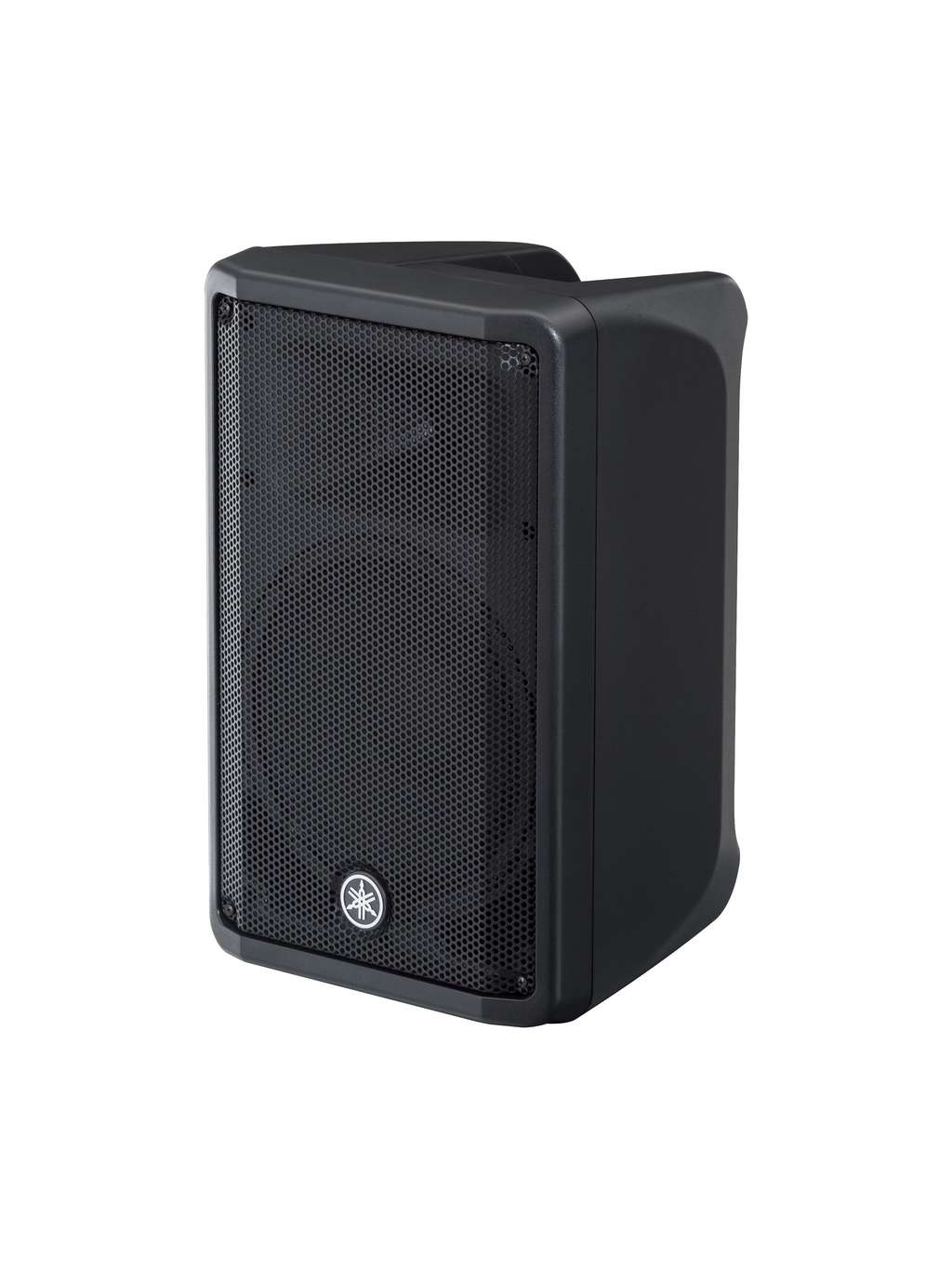

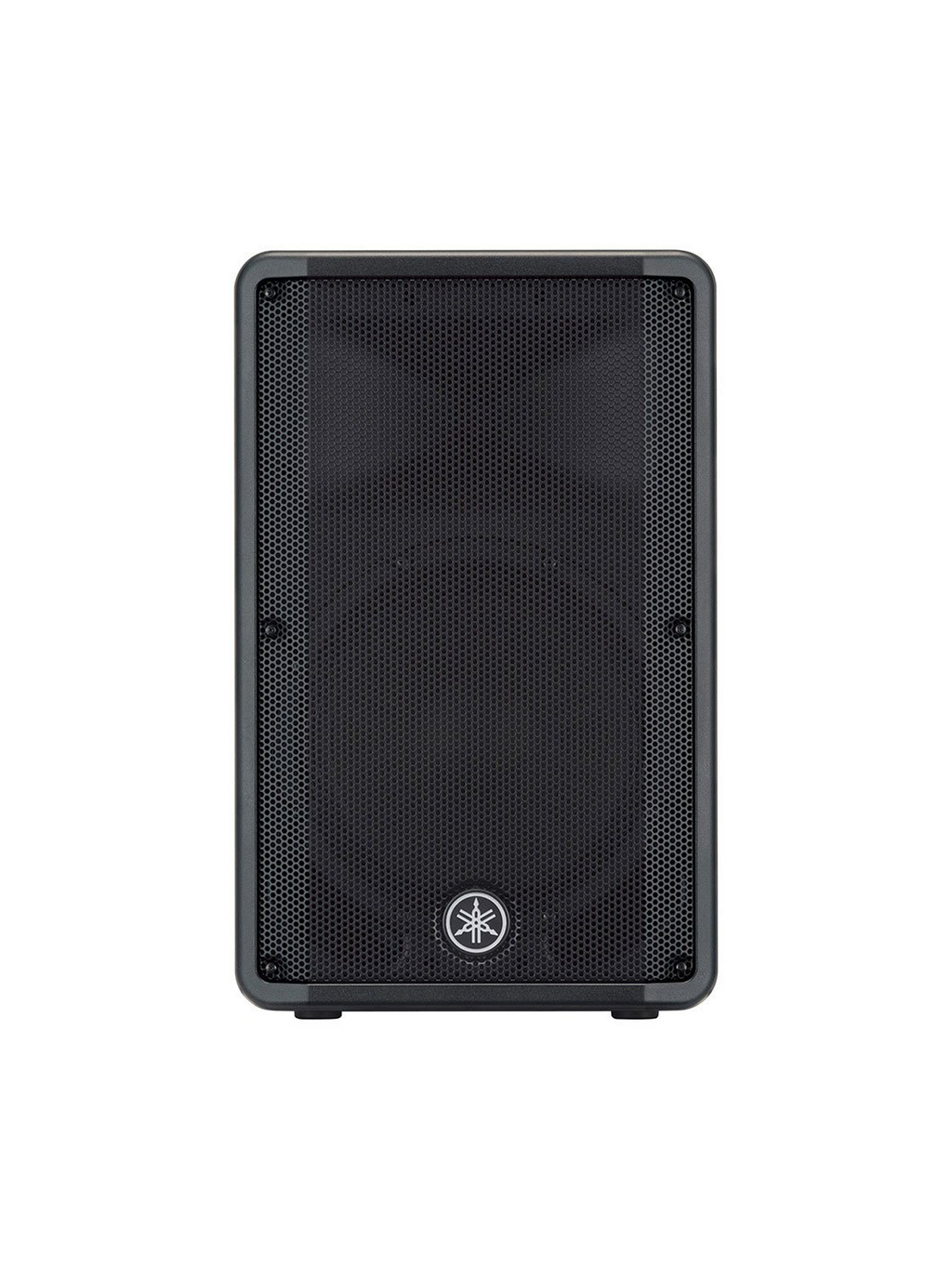

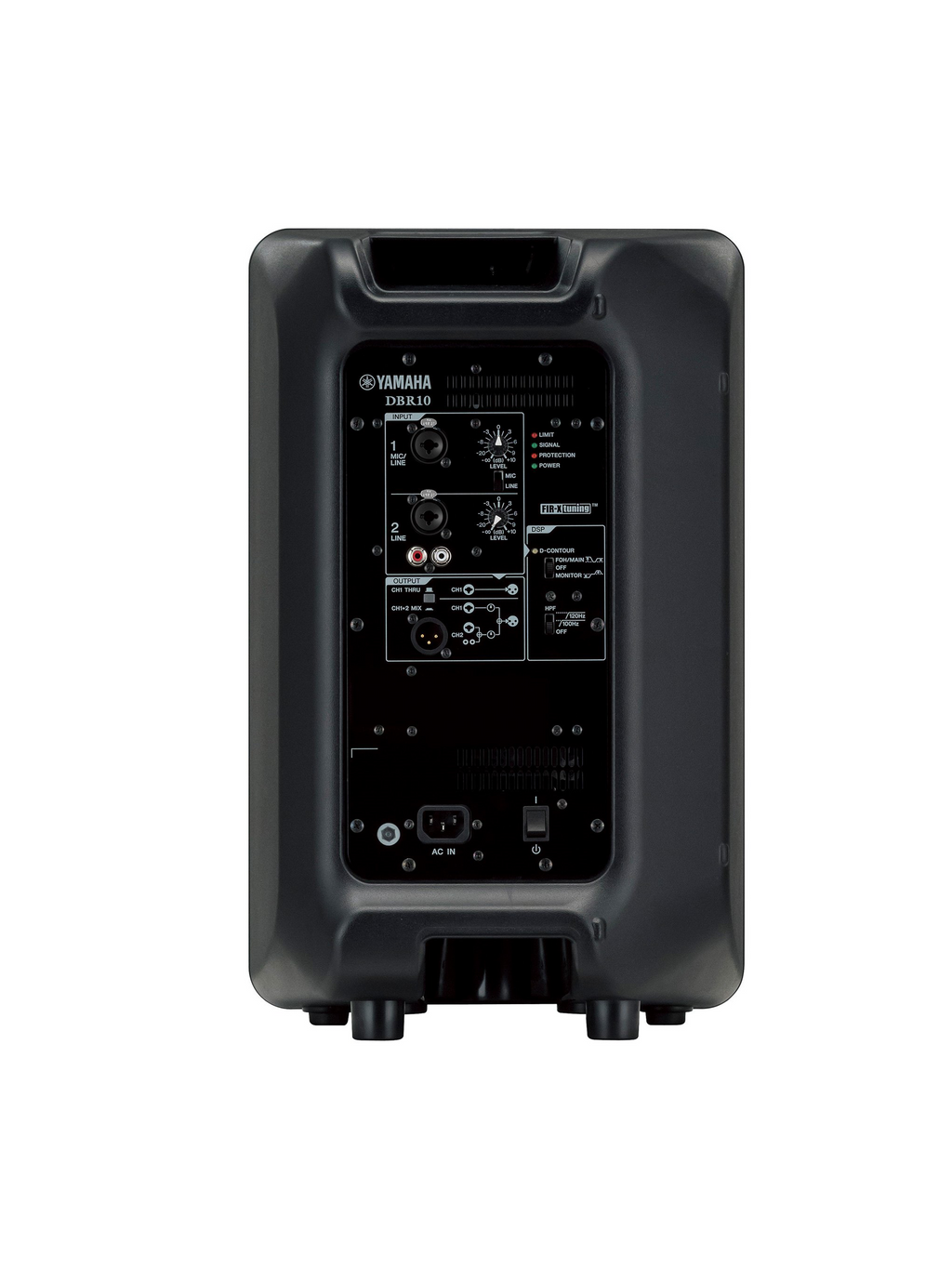

Yamaha DBR10 – Active 10” Powered Speaker

The Yamaha DBR10 is a lightweight, high-performance active speaker designed for live sound, DJs, presentations, and installations. Powered by a Class-D bi-amp system with advanced DSP, it delivers clear, powerful audio while remaining portable and easy to set up.

Key Specifications

• Type: 2-Way, Bi-amped, Bass-reflex

• LF Driver: 10" woofer

• HF Driver: 1" compression driver

• Frequency Response: 55 Hz – 20 kHz

• Maximum SPL: 129 dB

• Amplifier Output: 700W peak (325W continuous)

• Coverage: 90° (H) × 60° (V)

• DSP: FIR-X tuning + D-CONTOUR (FOH/Monitor modes)

• Inputs:

  • CH1: XLR/TRS combo

  • CH2: XLR/TRS combo + RCA

• Output: XLR link/through

• Pole Mount: 35 mm

• Rigging Points: M8

• Dimensions: 308 × 493 × 289 mm

• Weight: 10.5 kg
